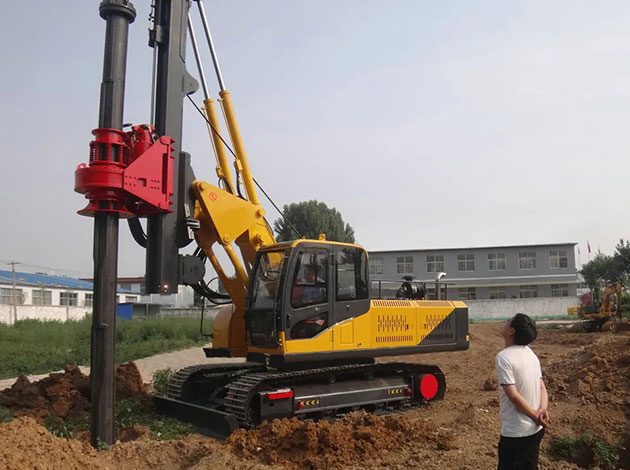

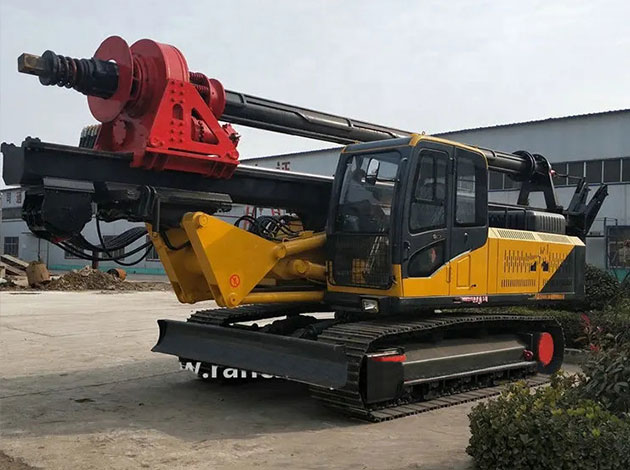

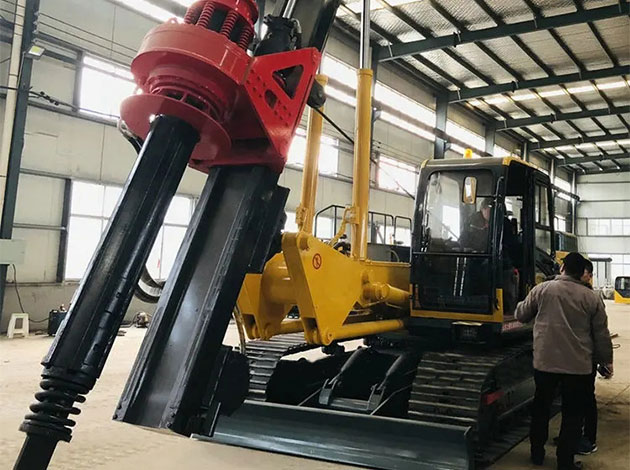

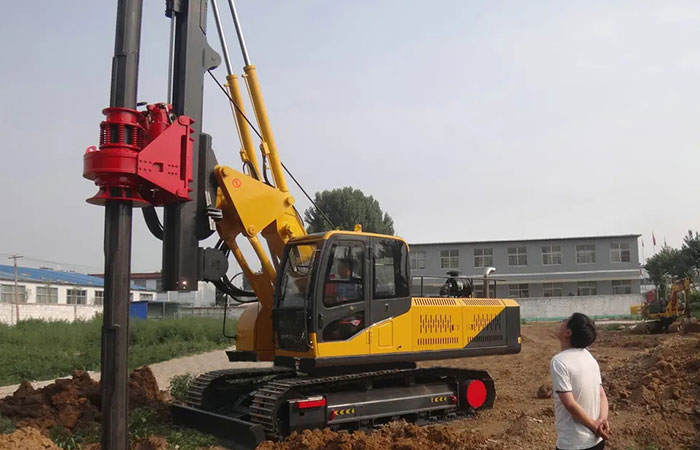

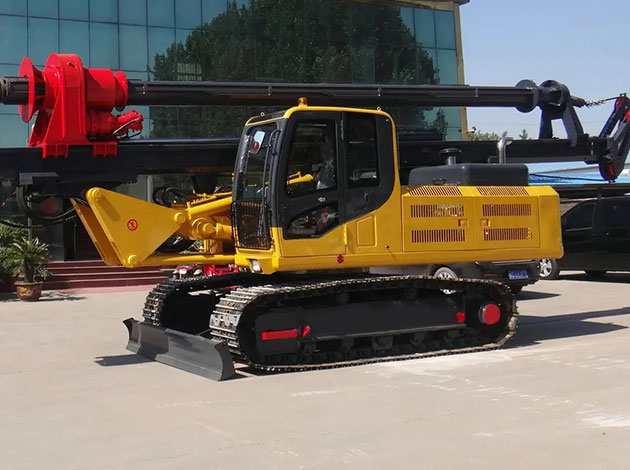

Rotary Piling Machine 20M

The advanced rotary technology of this rotary piling machine ensures fast and efficient piling, while its robust design ensures durability in the toughest conditions.
Share :
Description
Introducing our breakthrough rotary piling machine - the pinnacle of cutting-edge engineering for piling operations. Standing 20 meters high, the machine offers unrivaled power and precision, making it the ultimate solution for the most challenging piling tasks. Its advanced rotary technology ensures fast and efficient pile driving, while its robust design ensures durability in the toughest conditions. Packed with state-of-the-art features, the 20m rotary pile driver redefines efficiency and reliability in the piling industry. Take advantage of the unrivaled capabilities of our 20m rotary piling machine today to increase the efficiency of your piling projects.

Parameter
Specifications
model RCQ520
Working mode   hydraulic oil cylinder pressure
Drilling diameter (mm) Φ500-Φ1500
drilling depth  (m) 20
Kelly bar diameter (mm) 315
Dimension (mm) 10500X2650X3350mm
Total weight (t)   18-28T
Power head max output torque (KN.m) 120-160KN.m
Rotary speed (r/min) 6-35RPM
Pressurized oil cylinder max pressure 80KN
Pressurized oil cylinder max lifting force 100KN
Main winch max lifting force 160KN
Main winch max lifting speed 45m/min
Assisting winch max lifting force 30KN
Assiting winch max lifting speed 60m/min
Pressurized oil cylinder max stroke 2500mm
Mast sidewards inclination ±4°
Mast forwards inclination
Max working pressure 25Mpa
pilot pressure 3.5Mpa
Travelling speed (km/h) 5km/h
Working hight 12800mm
Working weight 2500-3000mm
Diesel engine power (KW) 151KW ,cummins ,water cooling ,turbo charger ,
FAQ
If you have any other questions, please feel free to ask
Setting trade services and global marketing in one, and strive to be China's first-class international export group.
How long will I receive the truck after payment? And what is your payment term?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
Why is your price a little higher than other Chinese brand trucks?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
What warranty do you provide for your Dongfeng truck?
Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
