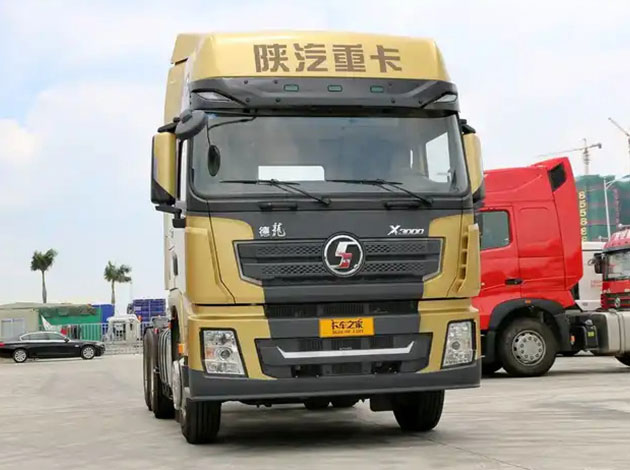

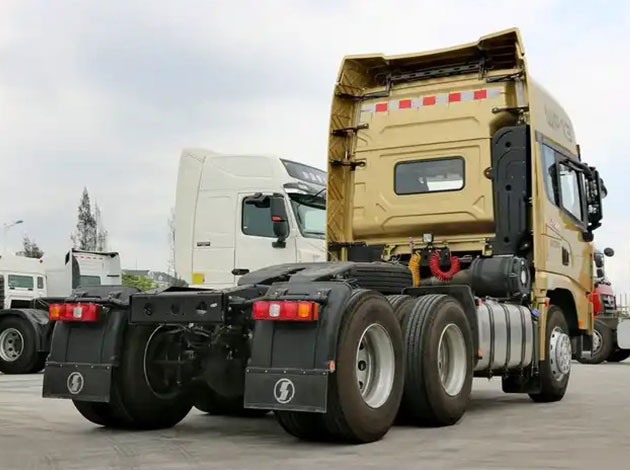

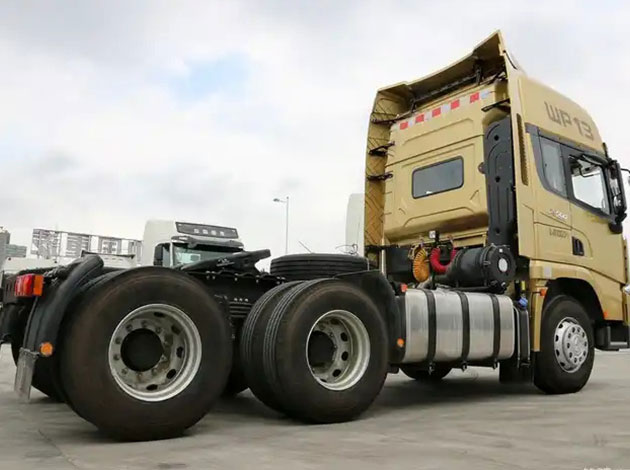

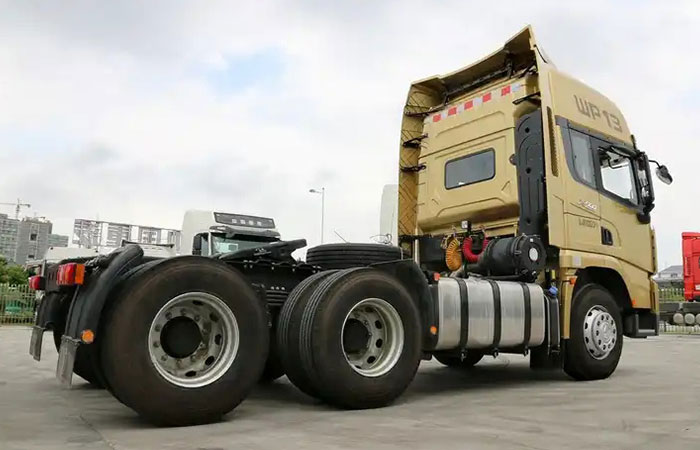

| Product Name | Shacman x3000 | |
| Type | 6x4 Tractor | |
| Chassis Dimensions(mm) | ||
| Overall chassis length | 6940 | |
| Cab width | 2500 | |
| Cab height (unladen) | 3960 | |
| Wheel base | 3300+1350 | |
| Front overhang | 1480 | |
| Rear overhang | 810 | |
| Vehicle weights(kg) | ||
| G.V.W | 25000 | |
| G.C.W | 49000 | |
| Curb weight | 9580 | |
| Frame profile Dimensions(mm) | ||
| Frame width (front ) | 1080 | |
| Frame width ( rear ) | 800 | |
| Section height | 300 | |
| Section width | 90 | |
| Engine | Type | ISZ520 51 |
| Emission level | Euro Ⅴ | |
| Maximum power | 520PS at 2300rpm | |
| Maximum torque | 2460Nm at 1100-1400 rpm | |
| Number of cylinders | 6 | |
| Displacement (lit) | 12.98 | |
| Cylinder bore (mm) | 130 | |
| Stroke (mm) | 163 | |
| System | Water cooled,turbocharged,after cooled , cold start. | |
| Clutch | Type | SACHS |
| Plate's diameter | ¢430mm | |
| operating system | Hydraulic control with air booster, pulling | |
| Gear box | Type | DT1425 OD(VOLVO-DONGFENG) |
| Number of gears | 14 forward gears& 4 reverse ,synchronized | |
| Ratios | Forward:13.16，10.54，8.92，7.15，5.74，4.60，3.75，3.00，2.38，1.91，1.53，1.23，1.00，0.80, Reverse:12.09，9.69，3.22，2.58 | |
| Brake System | Full air brake system, split pneumatic circuit ； parking spring brake acting on rear axles , Engine brake，WABCO ABS. | |
| Cab | Sleeper cab,double bunks,forward control type,new face, all welded steel cab , Electrical cab tilting, front and rear mechanical cab suspension ， adjustable driver’s seat, air conditioning system, electrical windows,, central lock. |
|
| Axle | Front | Elliot type, I beam section |
| Load capacity(ton):5.5 | ||
| Rear | Single reduction ,tandem axle, with axle lock , ratio 4.10 | |
| Load capacity(ton):10X2 | ||
| Tyres | 12R22.5 | |
| Suspension | Front | Leaf spring with shock absorber and stabilizer bar |
| Rear | Leaf spring | |
| Battery | Voltage (V) : 24 | |
| Battery capacity (A.h):165X2 or 180X2 | ||
| Fuel | Type | Aluminum alloy fuel tank, with lockable cap |
| Capacity | 600lit | |
