This Asphalt Milling Machine features durable materials and construction to withstand the rigors of use in heavy-duty construction conditions.
Share :
Description

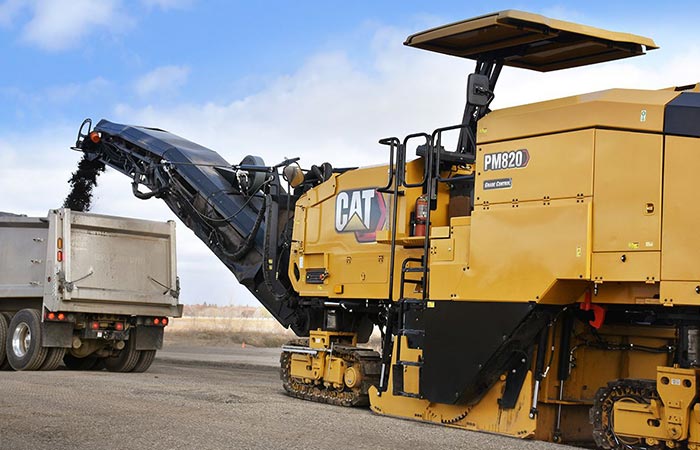

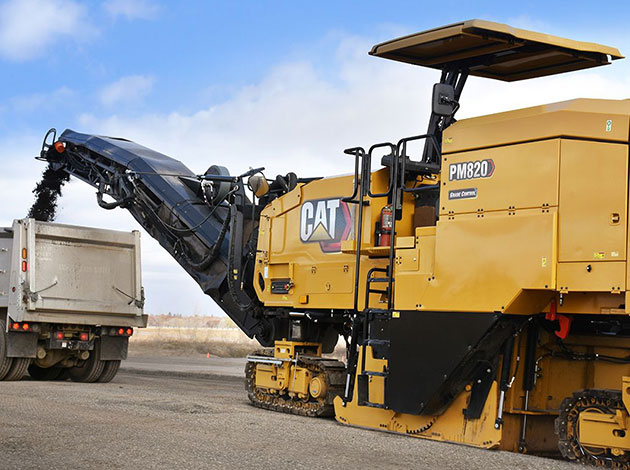

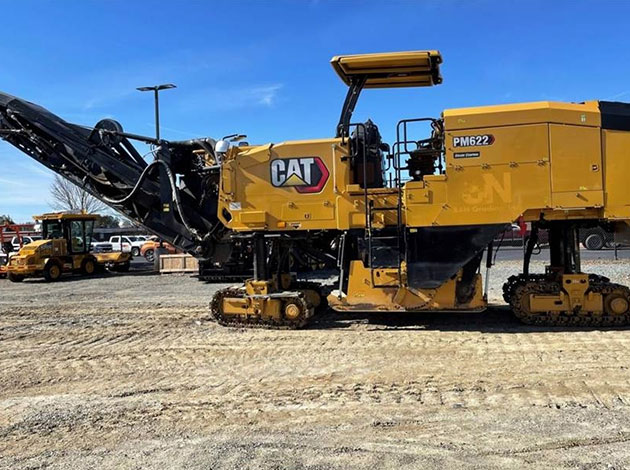

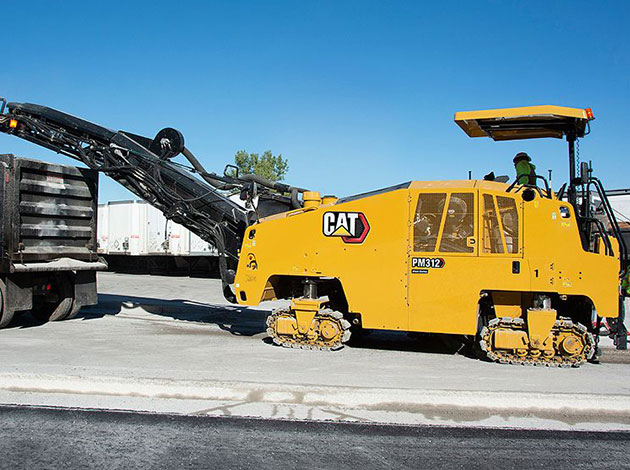

Cat Cold Planers are superior road surface finishing equipment designed for efficient, precise road improvement tasks. These cold milling machines provide critical support for building and road construction with their exceptional performance, reliability and flexibility. Cat Cold Planers are equipped with a high-speed rotating milling head that can quickly peel off the road surface to ensure that the smoothness of the road surface meets the design requirements.
Parameter
Specifications
Milling Width 2235 mm
Maximum Milling Depth 330 mm
Rotor Speeds 100 / 109 / 118 rpm
Number of Bits 193

POWER TRAIN

Rated Power 601 kW
Engine Cat C18 twin-turbo
Maximum Travel Speed 5.9 km/h
Maximum Milling Speed 100 m/min

WEIGHTS

Operating Weight 36700 kg
Transport Weight 32800 kg

DIMENSIONS

Operating Length - Conveyor Up 14.52 m
Operating Width 3.11 m
Height - Canopy 4.05 m
Maximum Truck Clearance 4.86 m
Minimum Right Cutting Radius 1.8 m
Minimum Left Cutting Radius 2 m
Conveyor Swing 60 degrees from center
Transport Length 12.43 m
Transport Width 2.74 m
Transport Height 3 m
