Description

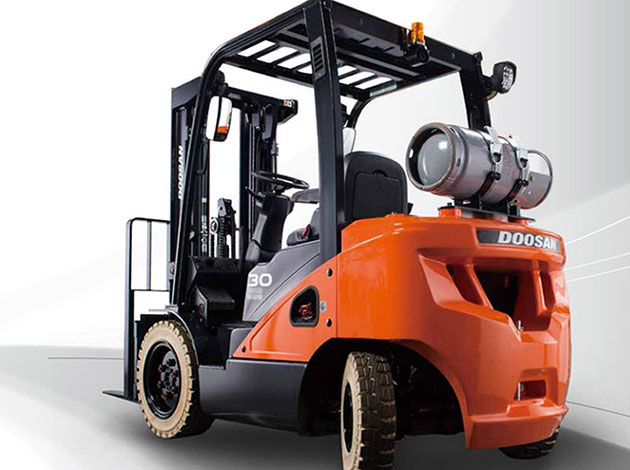

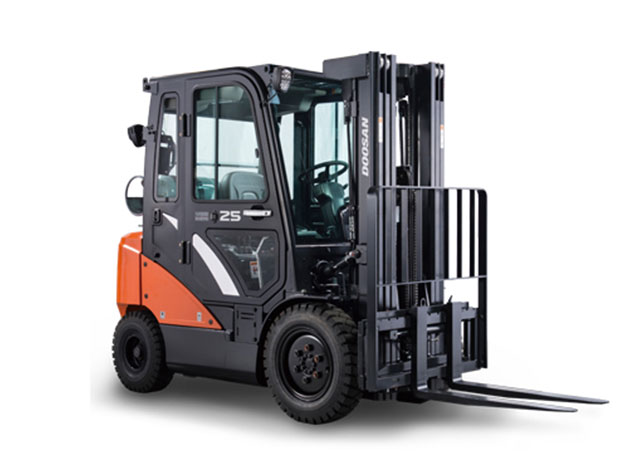

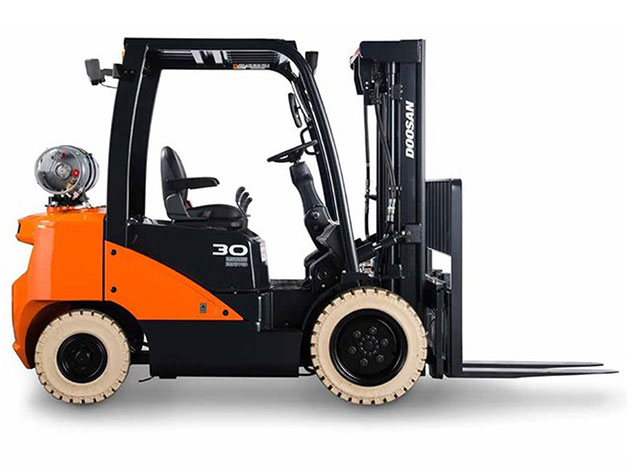

Precision engineered for durability, this Doosan forklift easily lifts and transports heavy loads, increasing efficiency across industries. With intuitive controls and ergonomic design, operators can experience comfort and control even in confined spaces. Doosan forklifts feature advanced technology that ensures reliability and minimal maintenance. Whether in a warehouse or outdoor environment, the Doosan forklift optimizes productivity and simplifies operations, making it a reliable choice for all your material handling needs.

Parameter

Specifications

Model	CPC15	CPC20	CPC25
Rated lifting load（kg）	1500	1500	2500
Load center distance（mm）	500	500	500
Free lifting height（mm）	100	150	150
overall length (With fork/Without fork)（mm）	3180/2260	3422/2502	3646/2576
Width（mm）	1090	1170	1170
Overhead guard height（mm）	2050	2070	2070
Wheelbase（mm）	1400	1600	1600
Minimum ground clearance（mm）	110	110	110
Mast tilt angle (front/rear)（%）	6° /12°	6° /12°	6° /12°
Tire no. (before)	6.5-10-1 OPR	7.00x12-12PR	7.00x12-12PR
Tire no. (after)	5.00-8-1 OPR	6.00x9-1 OPR	6.00x9-1 OPR
Minimum turning radius (outer side)（mm）	1950	2170	2240
Minimum right angle aisle width（mm）	3630	3900	3970
Fork size（mm）	920x100 x 35	1070X100X45	1070X100X45
maximum working speed(Full-load/No-load) （km/h）	14/15	17/19	17/19
maximum lifting speed(Full-load/No-load)（mm/s）	500/480	530/550	530/550
maximum gradeability(Full-load/No-load)（%）	20/21	20/21	20/21
Forklift weight（kg）	2900	3320	3320
Engine model	Quanchai/B02-082	Quanchai4C2-50V32/ PAGE/03 Quanchai4C2-50C41	Quanchai4C2-50V32/ PAGE/03 Quanchai4C2-50C41

FAQ

If you have any other questions, please feel free to ask

Setting trade services and global marketing in one, and strive to be China's first-class international export group.

Tel : 0086-0371-63688886

How long will I receive the truck after payment? And what is your payment term?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

Why is your price a little higher than other Chinese brand trucks?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.

What warranty do you provide for your Dongfeng truck?

Usually we accept T/T payment term for truck orders, but L/C payment is also acceptable under some special circumstances. About delivery time, normally it takes 30 days to produce your truck and deliver it to the port for loading after receiving your payment, but if you need it urgently, we can deliver it with the stored truck within one week.
