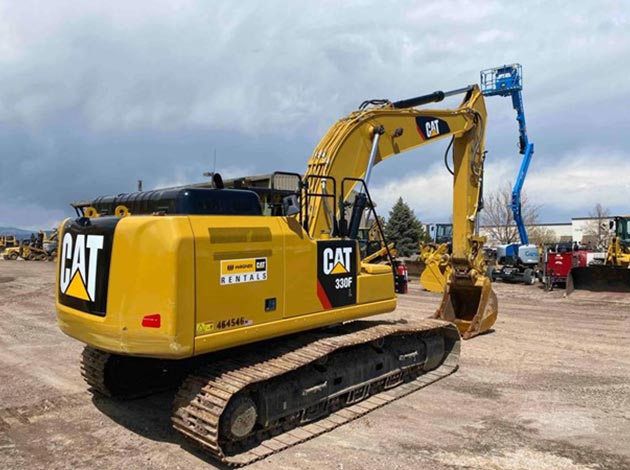

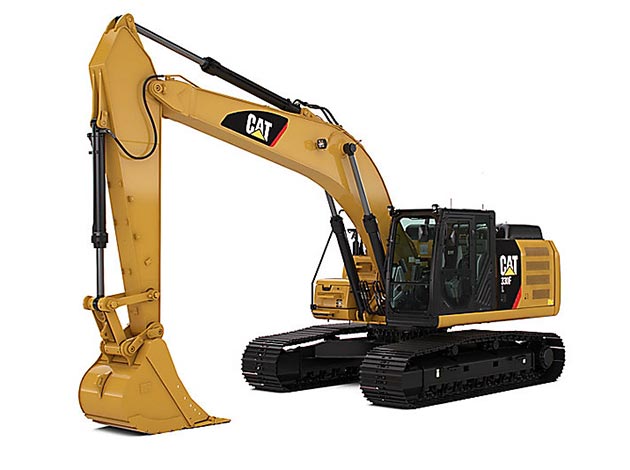

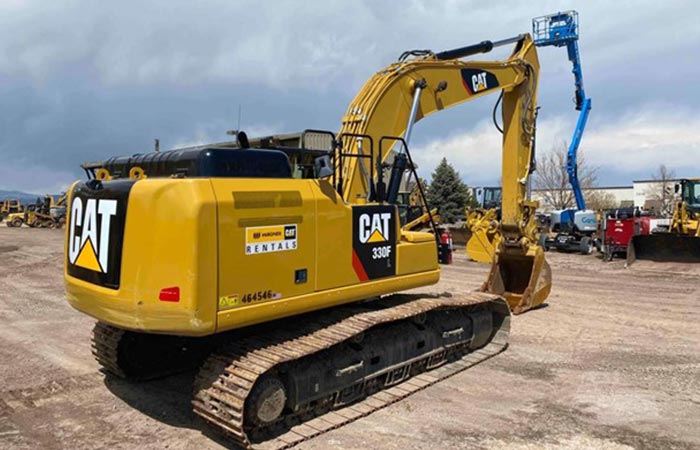

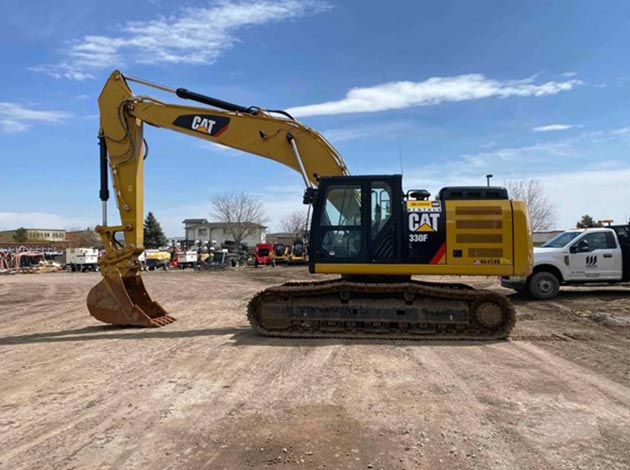

Cat 330F 30Ton

The Cat 330F is a 30-ton class excavator with a maximum digging depth of approximately 7.8 meters, making it ideal for deep excavation operations.
Share :
Description
The Cat 330F is a 30-ton excavator equipped with an efficient diesel engine with an output of approximately 270 to 300 horsepower. The Cat 330F has a maximum digging depth of approximately 7.8 meters, making it ideal for deep excavation operations such as large foundation projects and mining operations. Overall, its performance, deep digging capabilities and versatility make it ideal for large construction projects.
Parameter
Specifications
engine
Engine Model  Cat® C7.1
Engine power  225 kW
Net power  223.8 kW
Bore  105mm
Stroke  135mm
Displacement  7.01 L
working weight
Operating weight  31,100 kg
Swing mechanism
Swing speed  11.50 rpm
Maximum rotary torque  110 kN m
Hydraulic system
Main System - Maximum Flow (Implementation)  560 L/min
Maximum Pressure - Equipment  35,000 kPa
Maximum Pressure - Travel  35,000 kPa
Maximum Pressure - Rotary  29,800 kPa
Maintenance filling capacity
Fuel tank capacity  474 L
Cooling system  25 L
Hydraulic oil tank  147 L
Engine Oil  25 L
